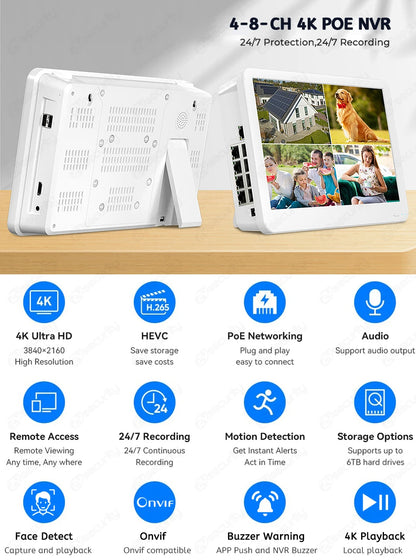

4K 8MP 4/8CH Network Video Recorder with 12" Screen

8CH POE NVR (8MP/5MP/4MP/3MP/1080P), Supports up to 8 x 8MP/4K IP Cameras, 8-Channel Power Over Ethernet.

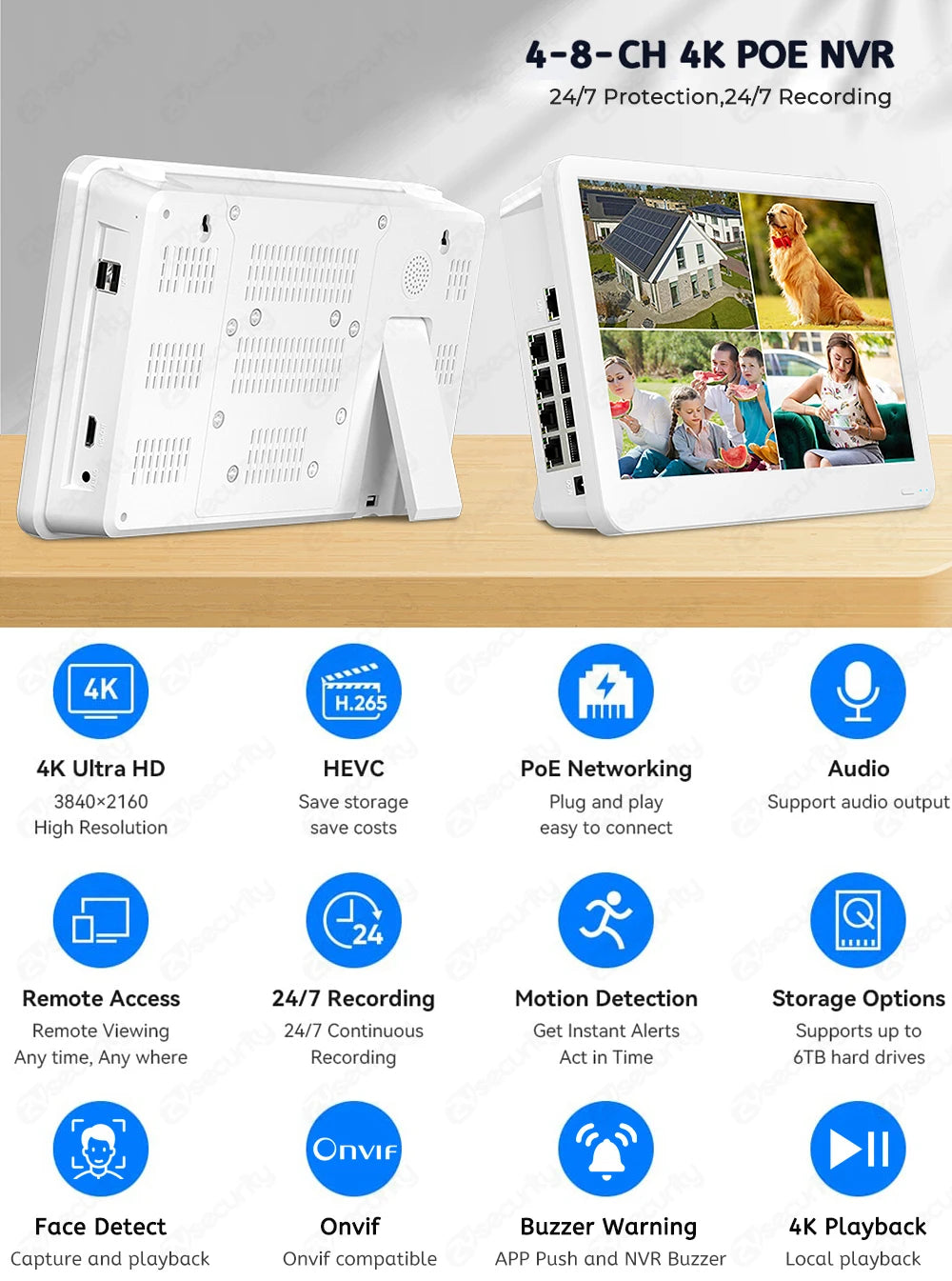

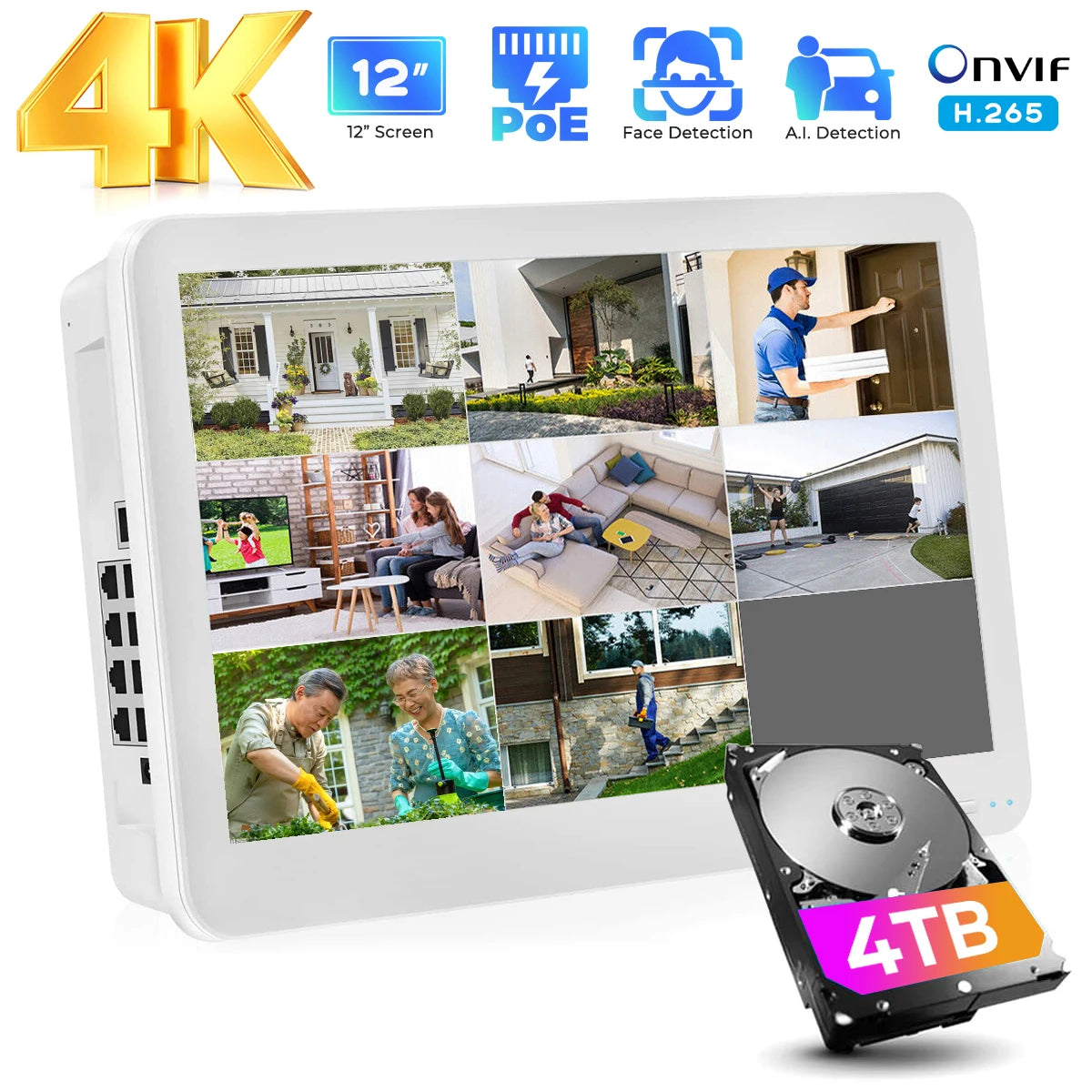

4/8ch 4K 8MP POE NVR with 12" Display

●4K 8MP POE NVR all-in-one with 12-inch display (display resolution 1366*768)
●Support H.265 intelligent coding technology
●Support 8MP high-definition network video preview, storage and playback
●Support PC client centralized management, mobile phone remote monitoring, support P2P Internet access function, one-key configuration video
● Compatible with third-party IP cameras that conform to the standard ONVIF RTSP protocol
●Support HDMI simultaneous output, HDMI maximum resolution 4K
●Support 250 meters long-distance POE power supply and transmission
>Support 1 SATA interface, the maximum single disk is 14TB, the boot interface can be changed freely, and it supports multiple languages
●Support IEEE802.3AF/AT standard power supply protocol, PD power intelligent detection, system-level overload protection
●Support 4/8-core (1236+4578) regulated power supply in various ways
●Support NTP (network school time), SADP (IP automatic search), Email (mail service), UPNP (Universal Plug and Play)

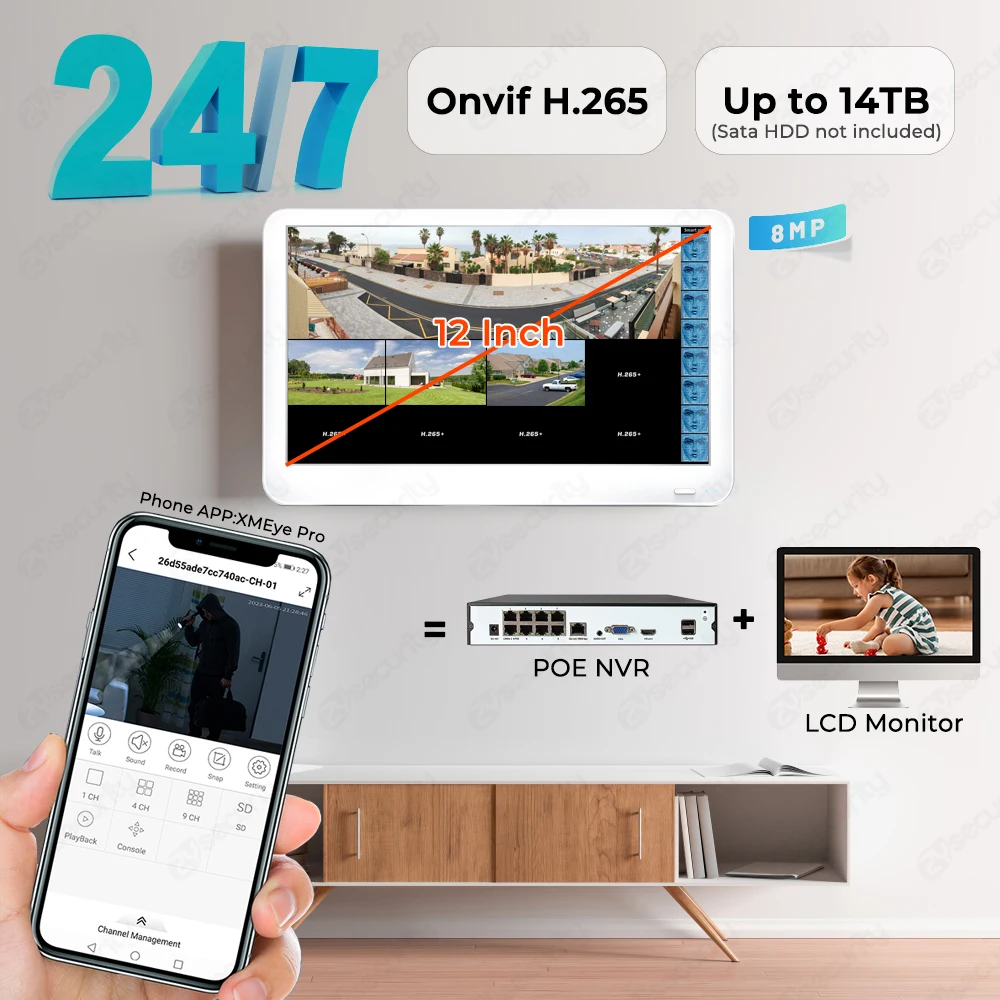

POE Monitor NVR = Monitor + POE NVR

12INCH monitor NVR, 7/24 recording, support 3.5" CCTV SATA HDD up to 14TB.

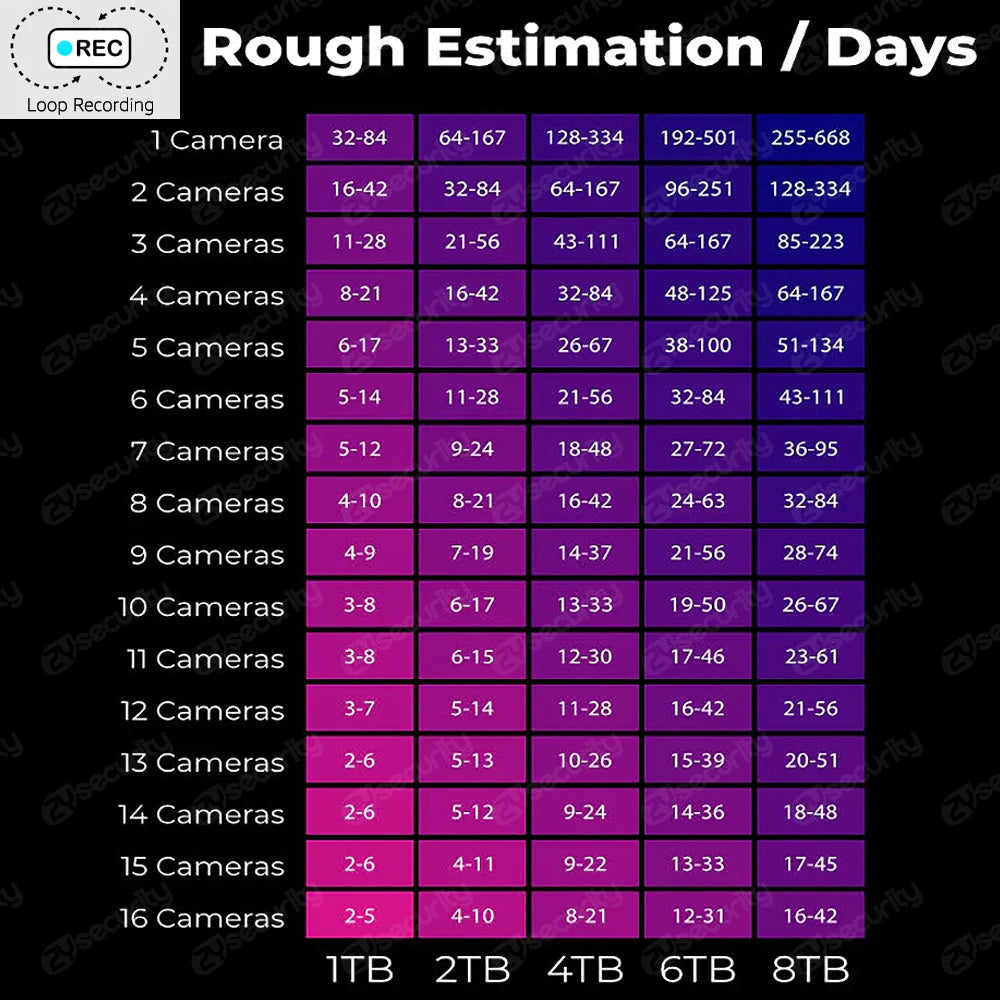

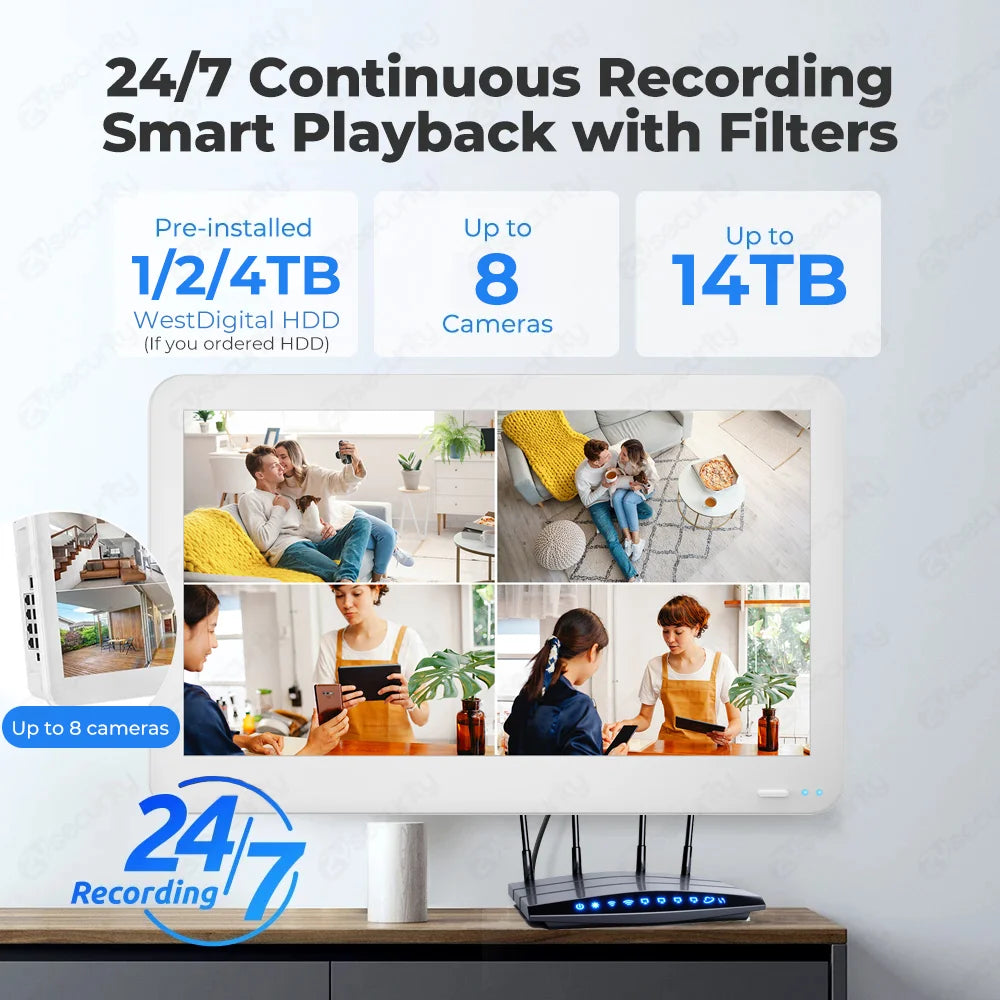

Continuous 24/7 Recording,Storage Up to 14TB

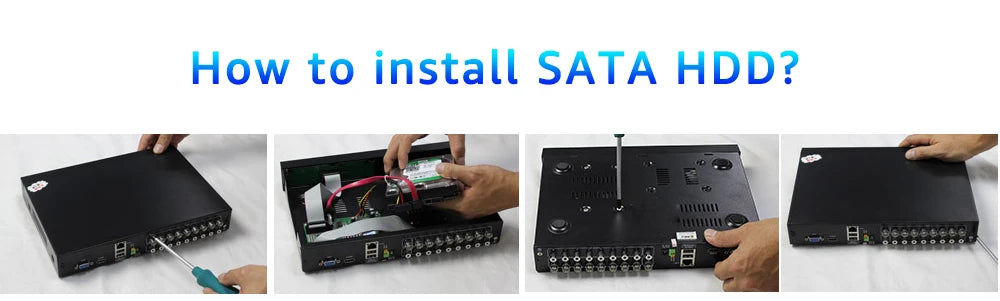

This network video recorder stores video files on one internal hard drive. It can record continuously or only in case of intrusion and will overwrite the past video files when the hard drive is full. Note: hard drive/disk are not included, you need to install an HDD (up to 14TB) for storage to get a reliable 24/7 recording.

4K Excellent Day & Night Vision

With this network recorder, you will be able to connect up to 8MP network video cameras and record on All Channels. 8MP security equipment provides you with the best possibility to get what you need.

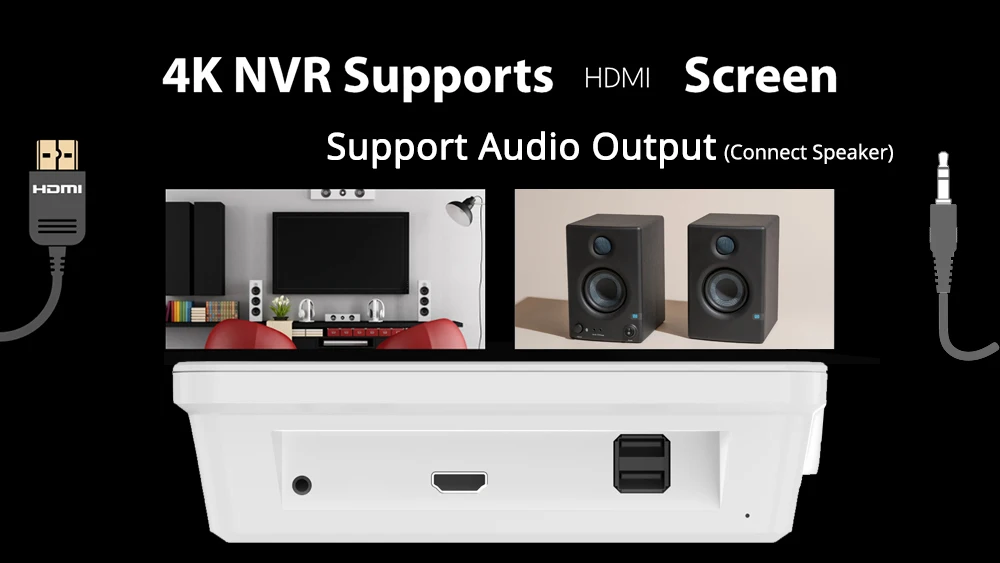

4K HDMI Output

When you need display the images in a larger monitor, just connect HDMI cable to them.

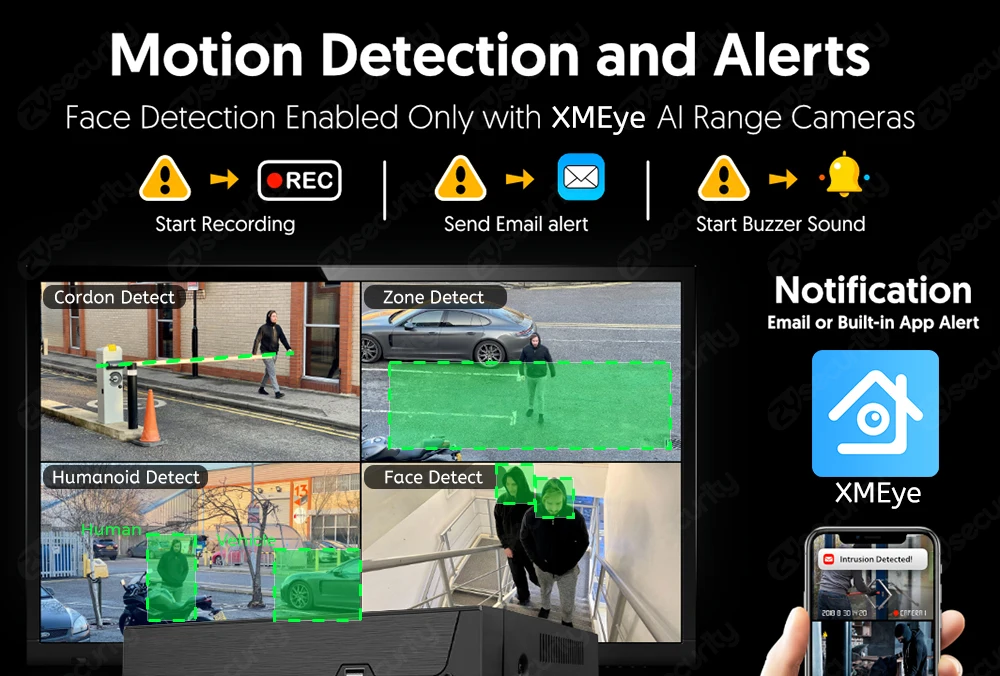

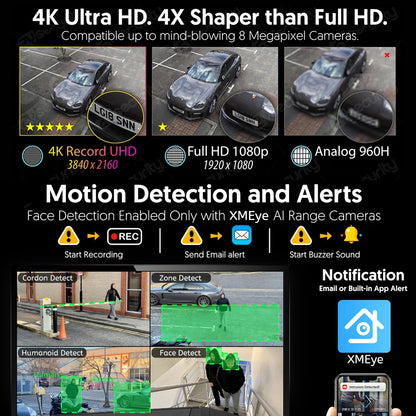

Motion Detection-Rich Alerts & Set Motion Zone

When any of the cameras detect motion, the PoE NVR could buzz to call your attention. It can also send email and push to you and trigger Recording. In this way, you could be informed in real time when invasion happens.

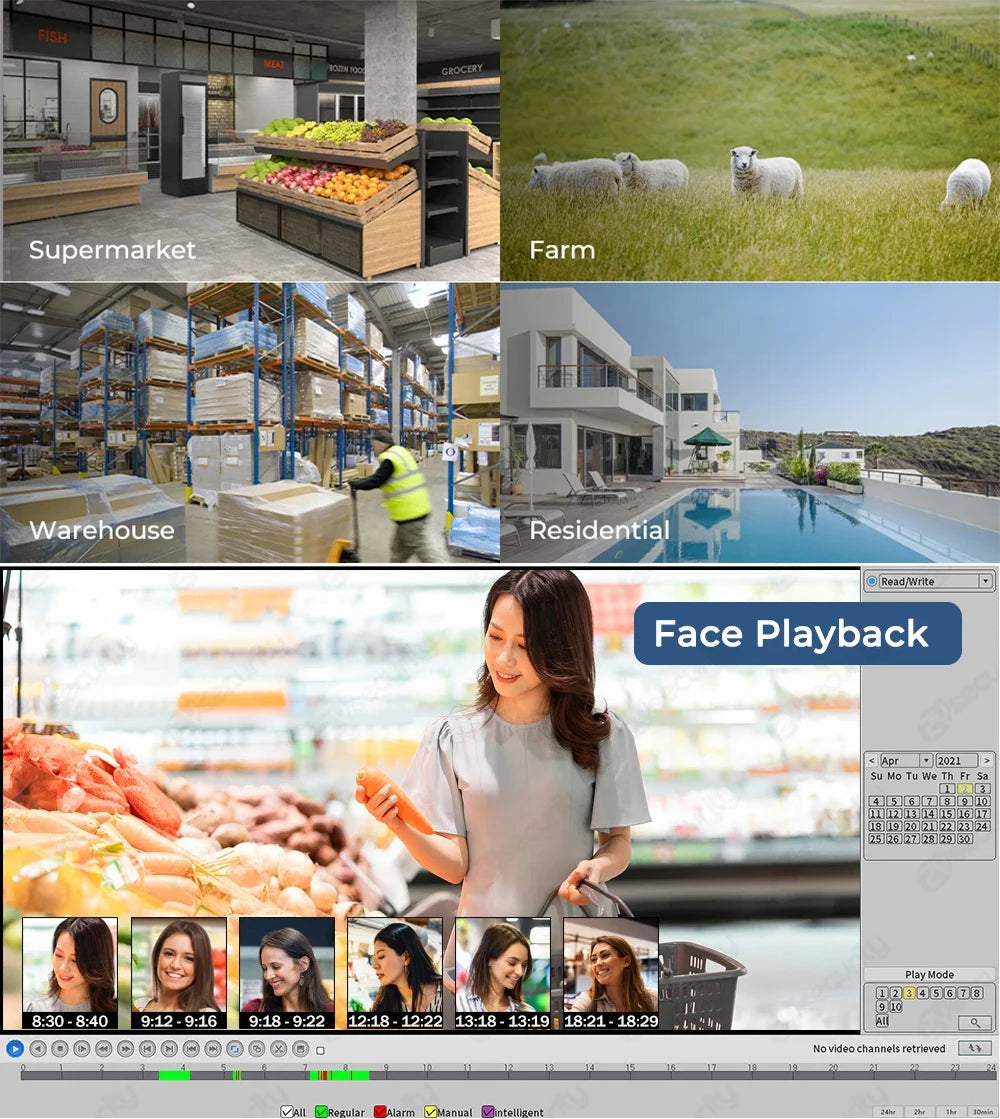

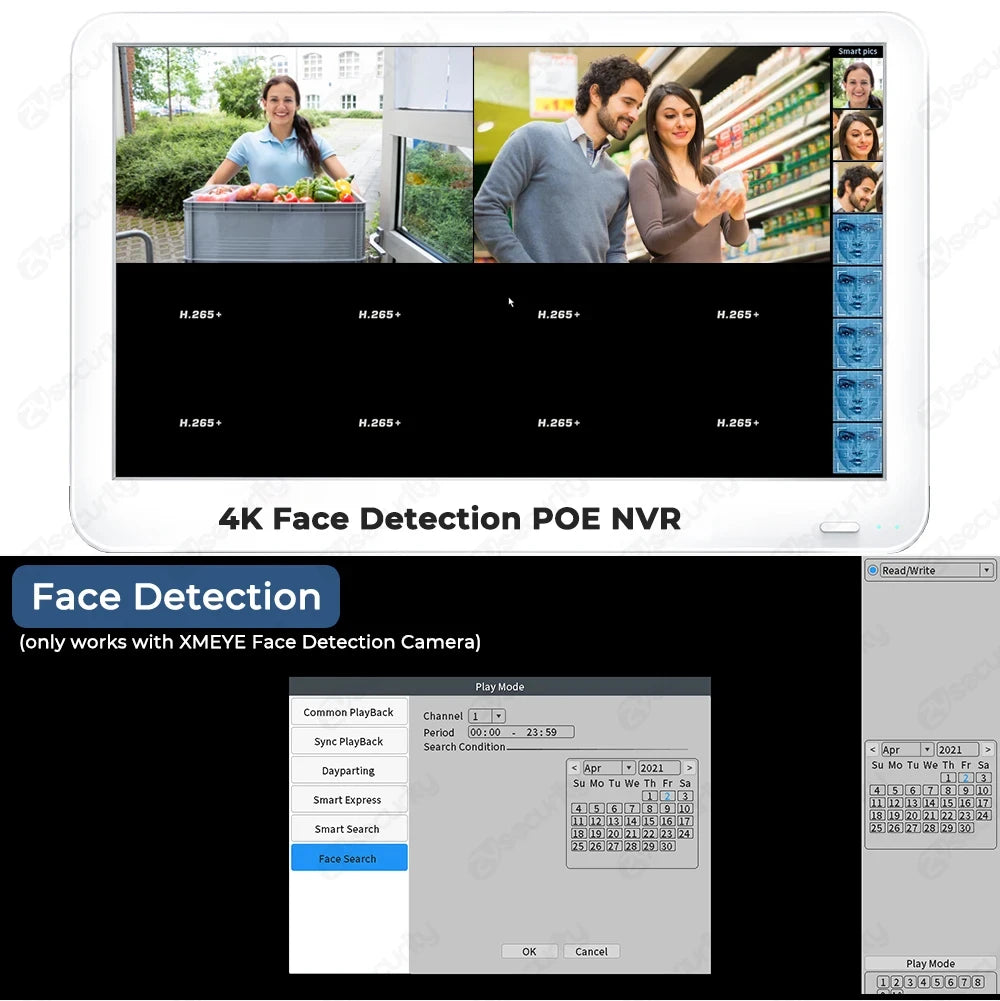

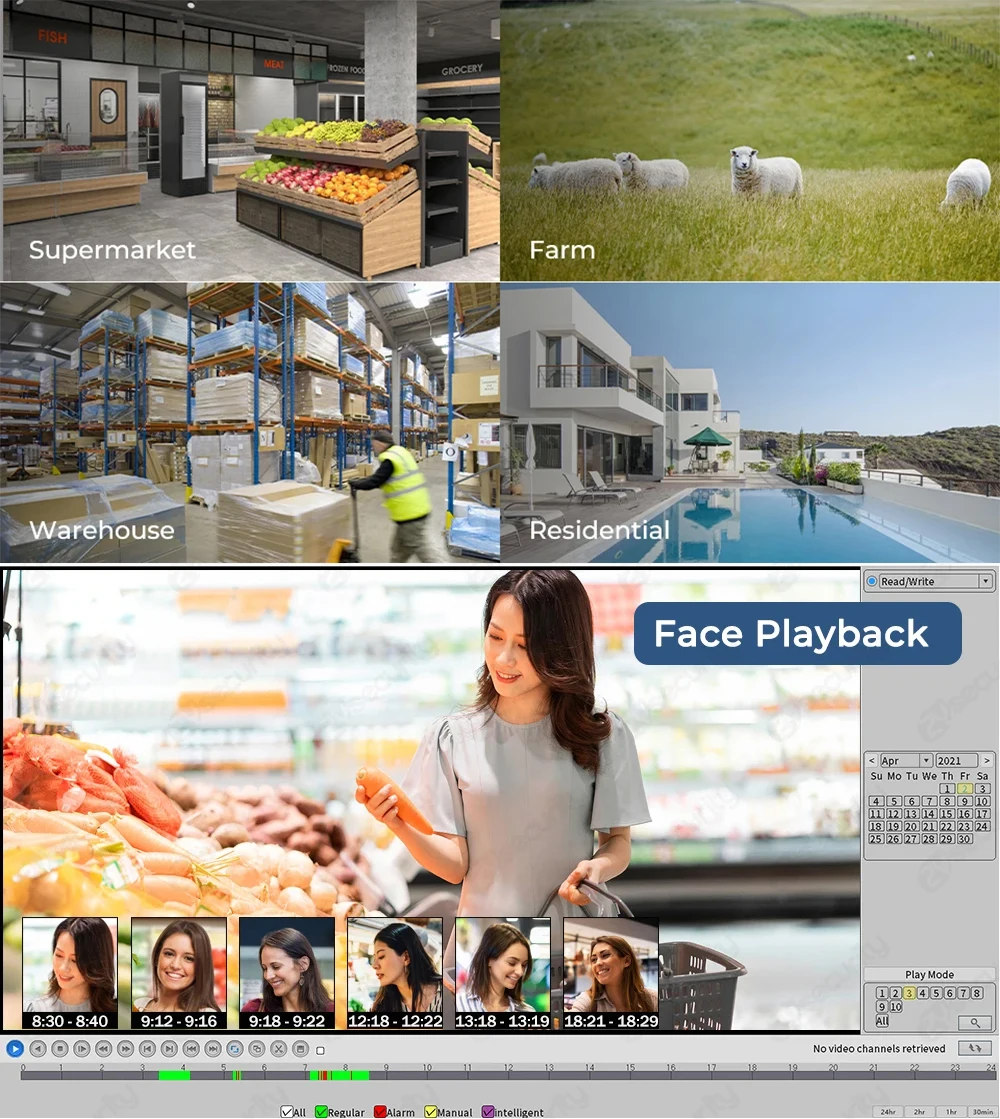

Face Recognition and Playback

Face Recognition (Only works with XMEye compatible face detection cameras), By setting up different motion zones, you're able to control where you want objects'movements to be detected and where won't.

Video Playback -- Recall Events and Moments

Support 4K(1)/5M(1+1)/4M(2+1)/3M(2+2)/1080P(4+1) local playback, support face playback. Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face retrieval.You can quickly search for any event that happened at any time.

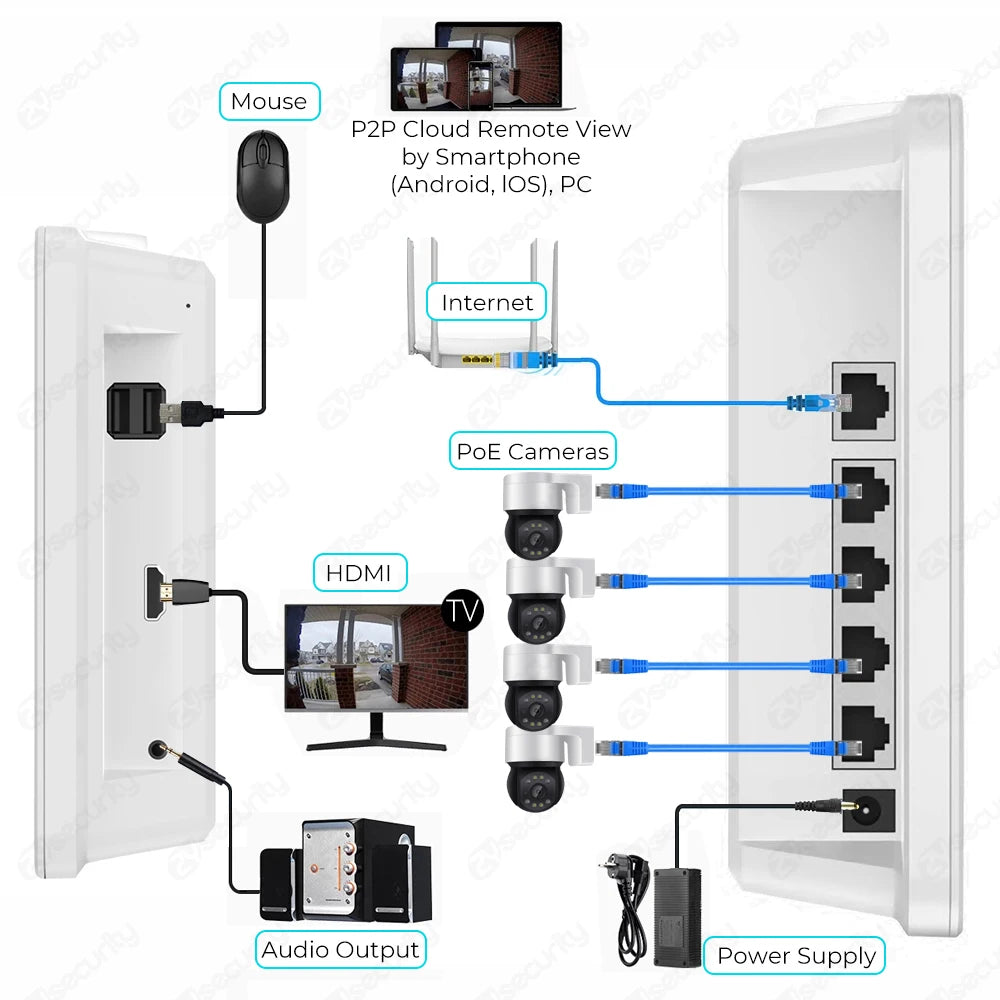

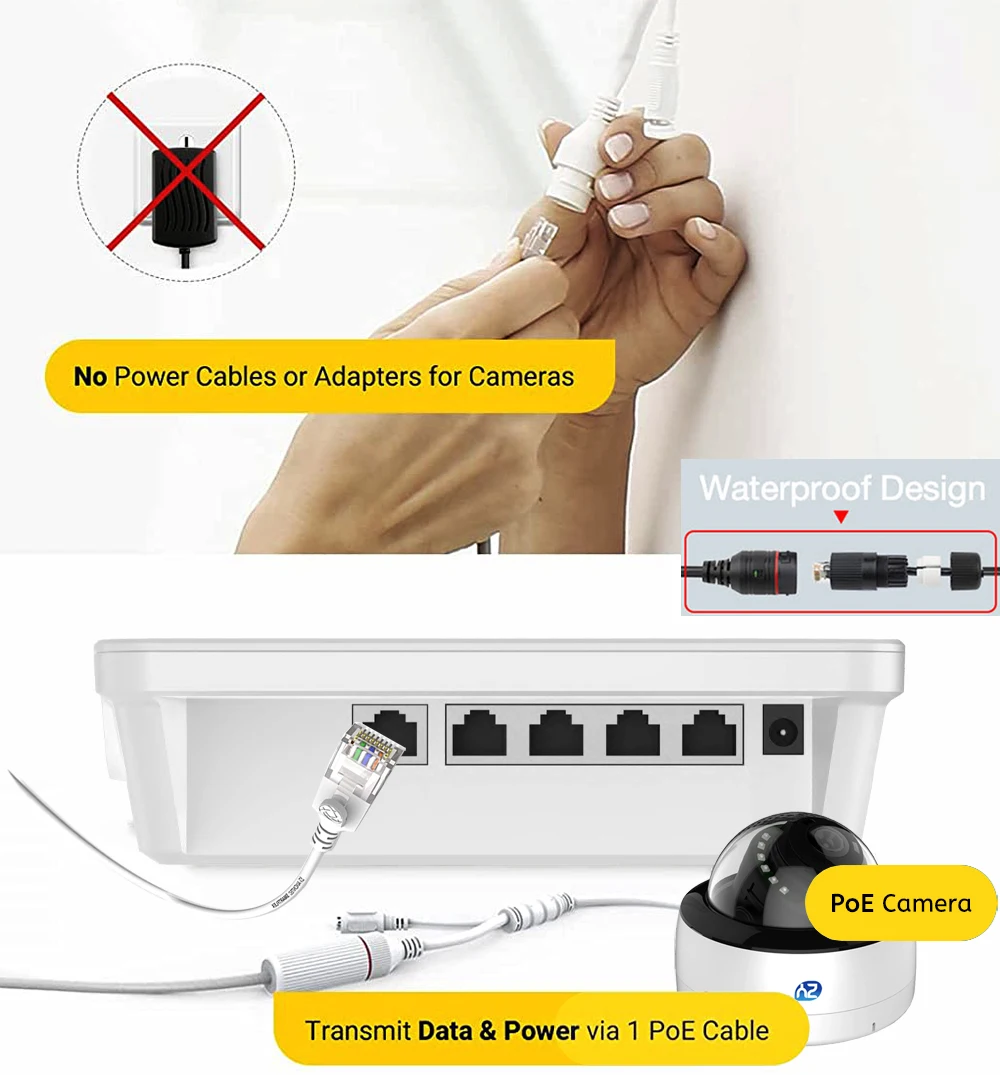

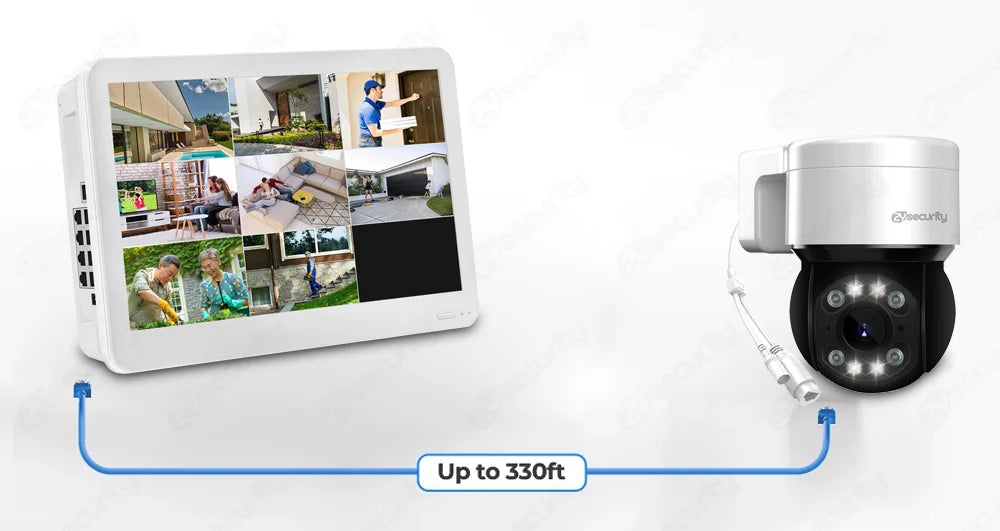

Plug & Play PoE Installation

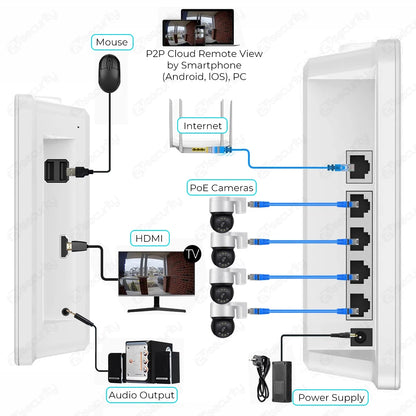

A real plug and play network video recorder! This PoE NVR features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. no need a power outlet nearby.

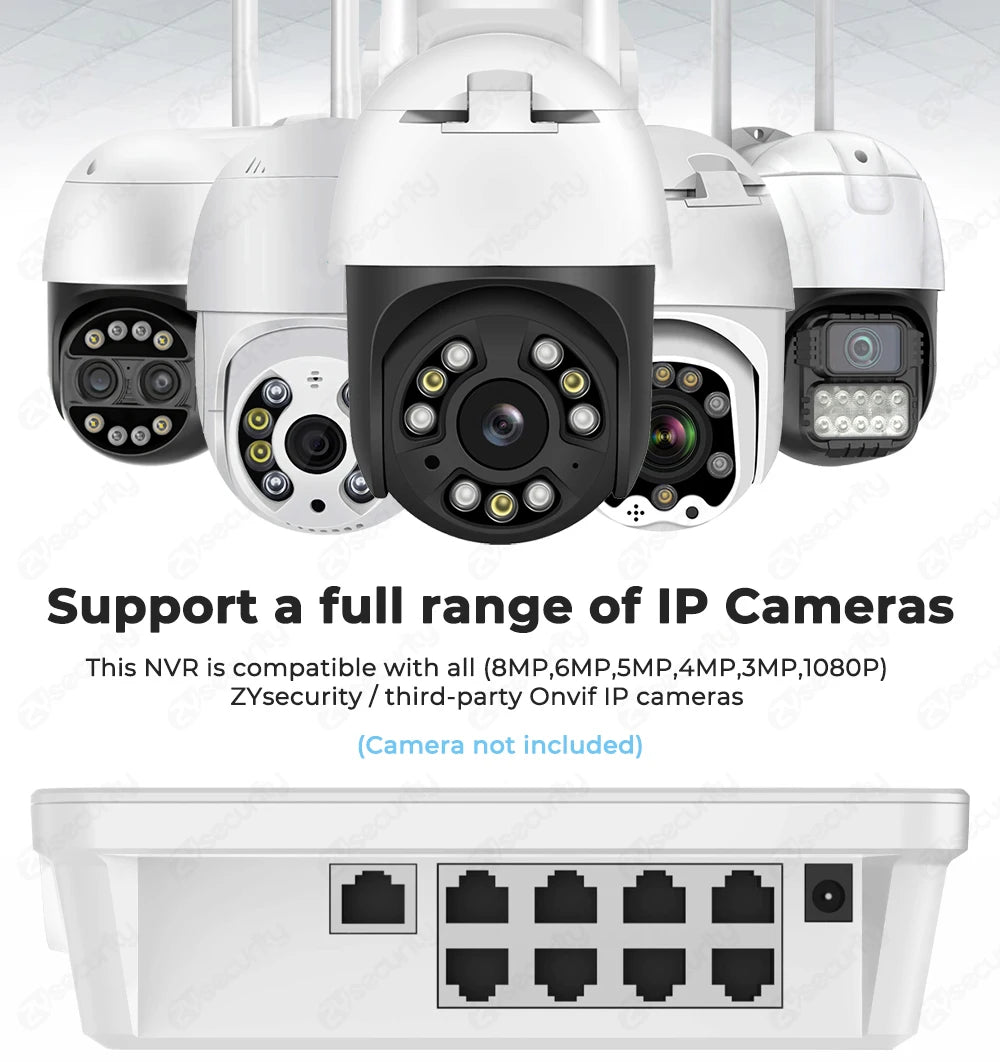

Supports a full range of IP cameras

With 4K recording, nothing is left to the imagination. The higher number of pixels (3840 × 2160 as opposed to 1920 × 1080) gives your video footage superior detail and definition.Camera Compatibility: 4K/8MP/5MP/4MP/1080P POE IP Cameras

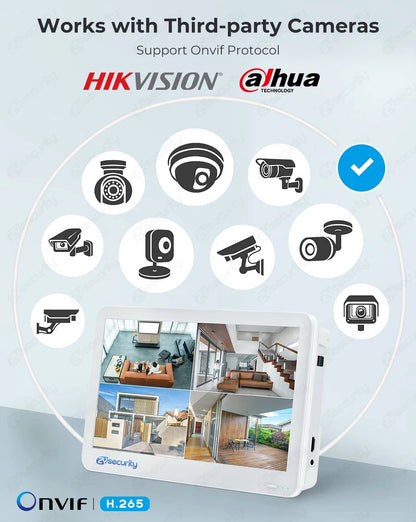

Onvif Protocol Works with Third-party Cameras

Support Onvif protocol, can work with other brand Onvif IP camera, you can use it together with hikvision, dahua, or other brand Onvif IP camera

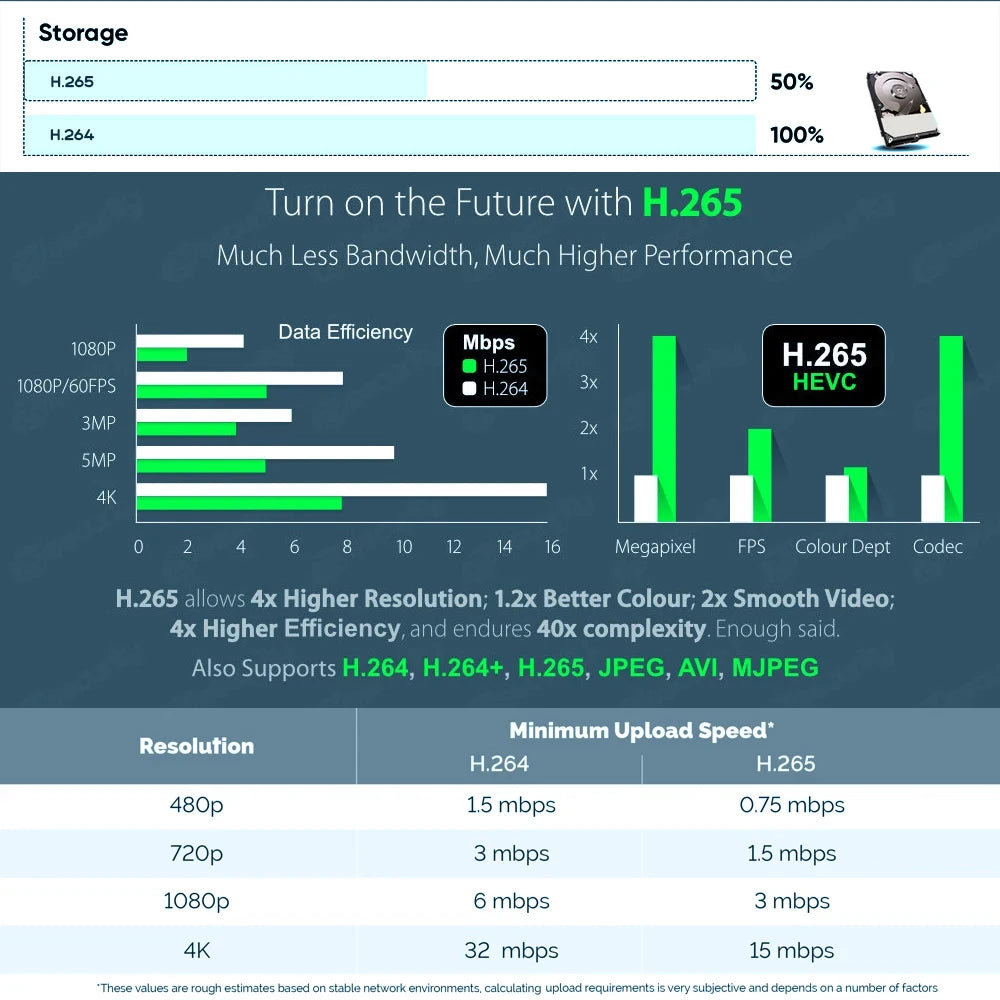

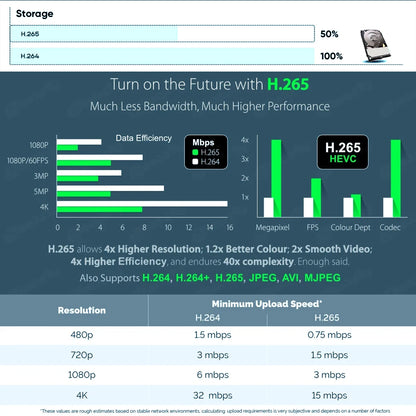

Advanced H.265 Compression Technology

Adopting the advanced H.265AI/H.265+(compatible H.265/H.264) video compression, the bandwidth efficiency and transmission speed are greatly increased. H.264 help you save 50% storage space than others. While dual-stream separates local recording from remote viewing to eliminate interference between them.

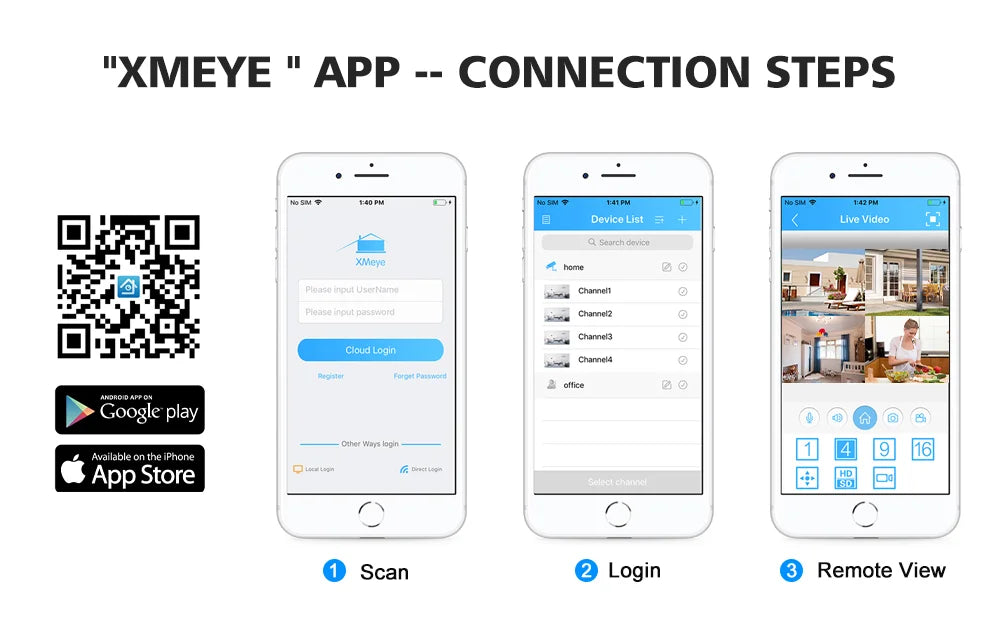

Plug Play and Live View from Anywhere Anytime

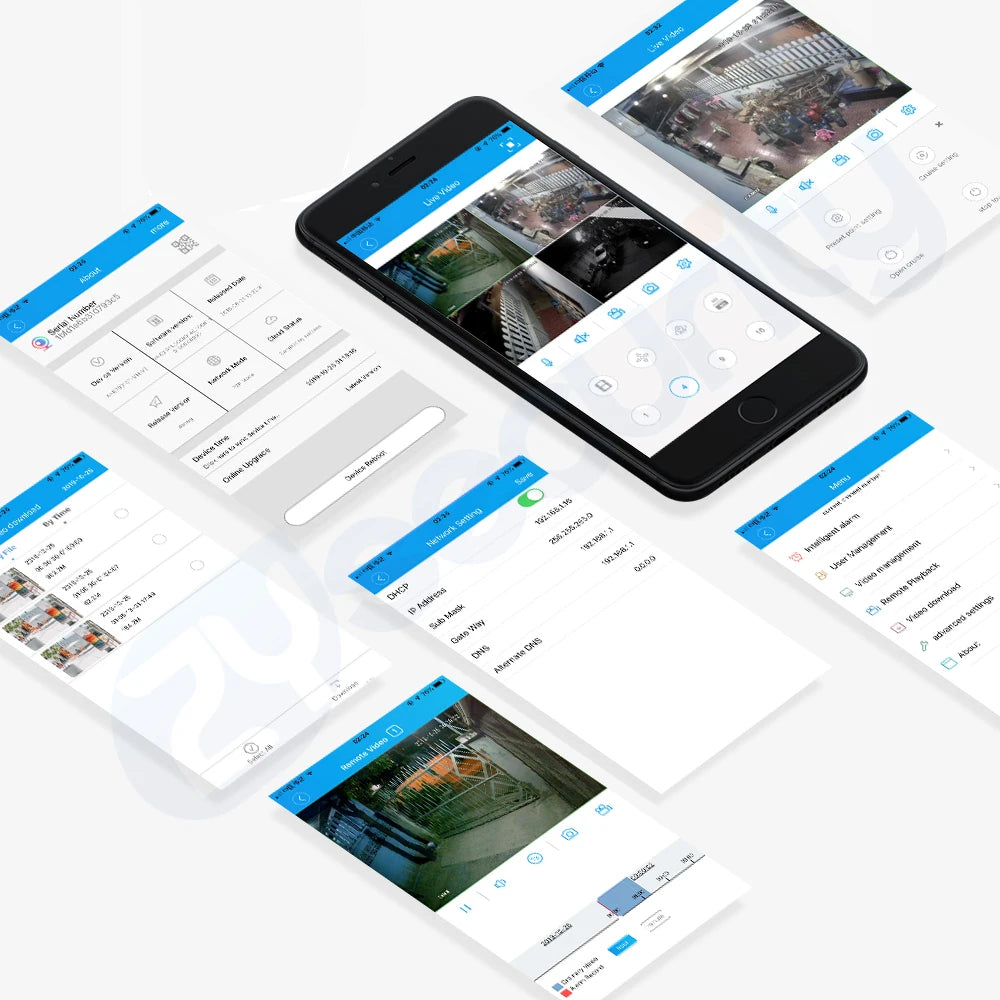

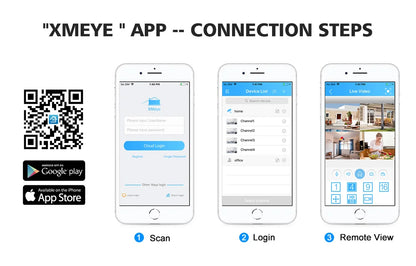

With the free XMEye APP, you can enjoy live video from every corner of the world. Check in on your home or business freely on your iOS/Andriod phone, tablet or PC, wherever you have an internet connection.

Easy install and connect

Design for everyone, remote view by pc, pad, or phone anywhere anytime.

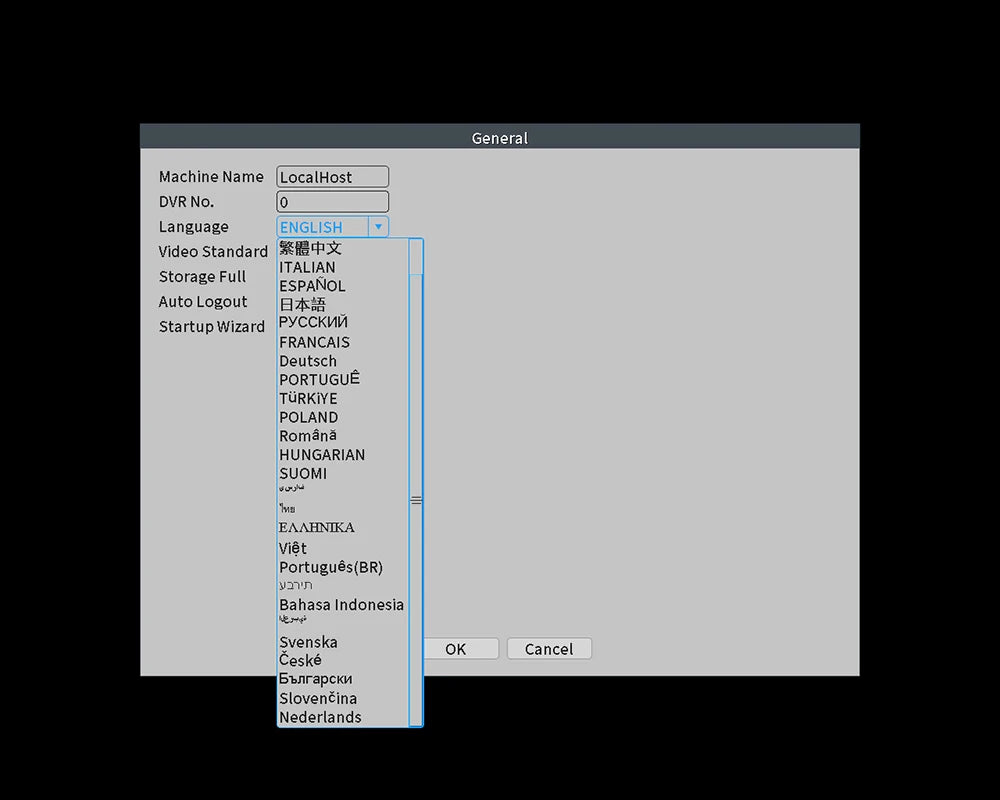

Multi Language Interface Support

Support English, Russian, Spanish, Portuguese, Polish, Hybrew, Arabic, Italian, Hungarian, Dutch, Romanian, German, French, Turkish, Thai, Crech, Korean, Greek, Bulgarian, Chinese...

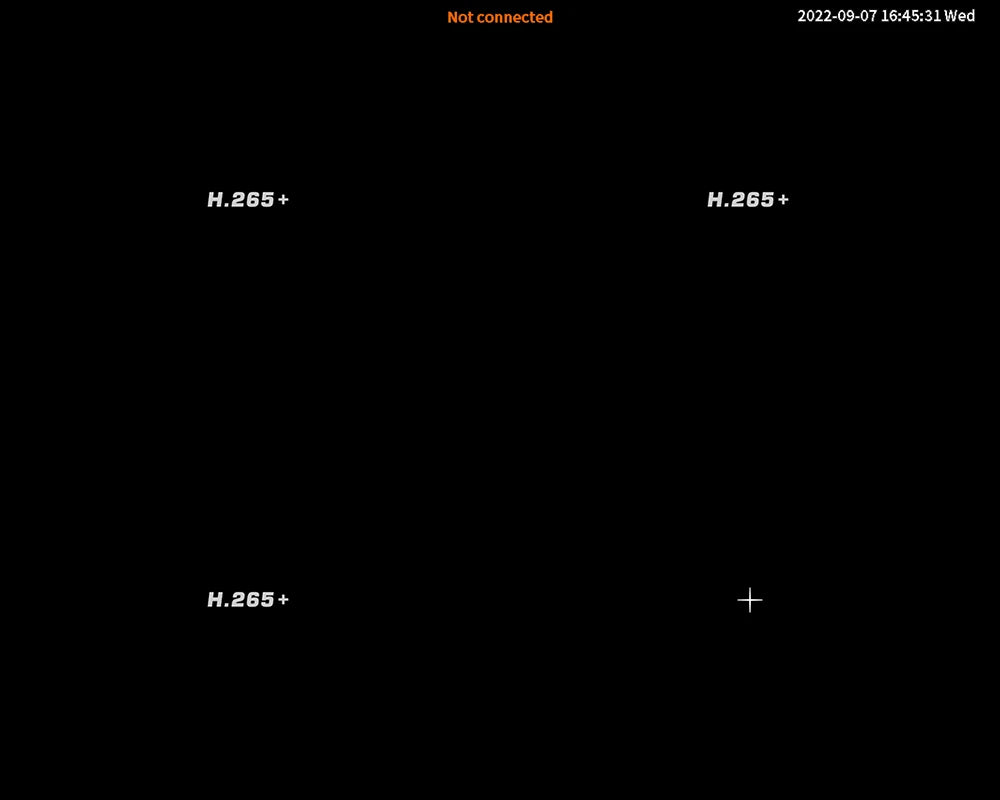

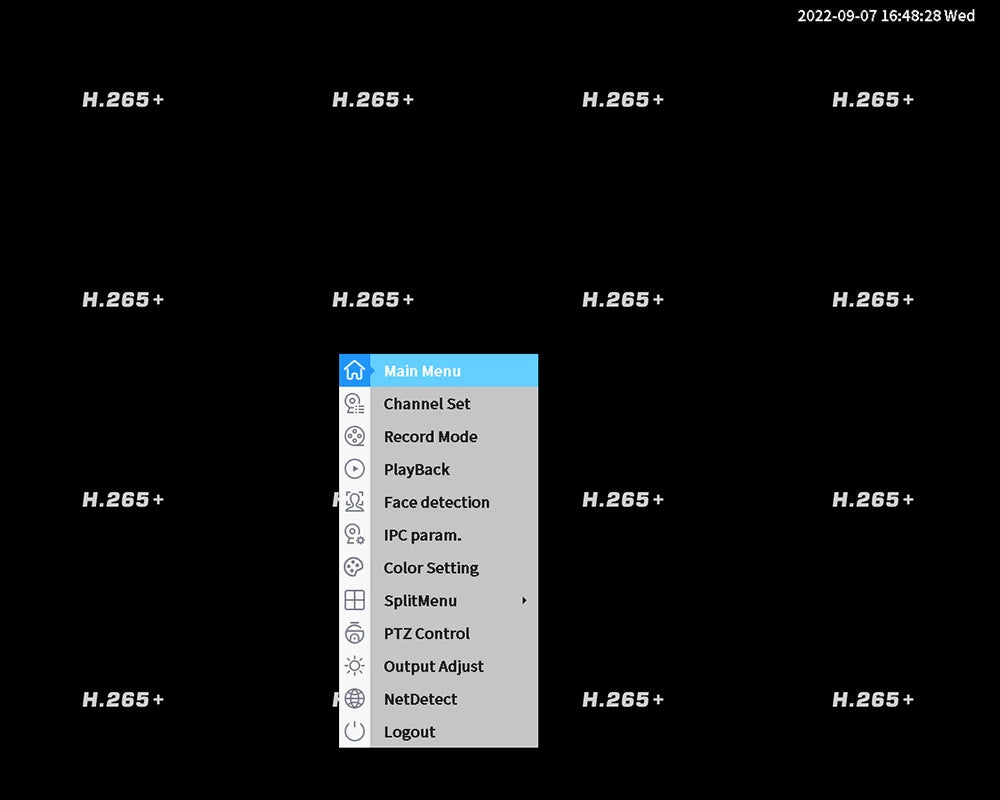

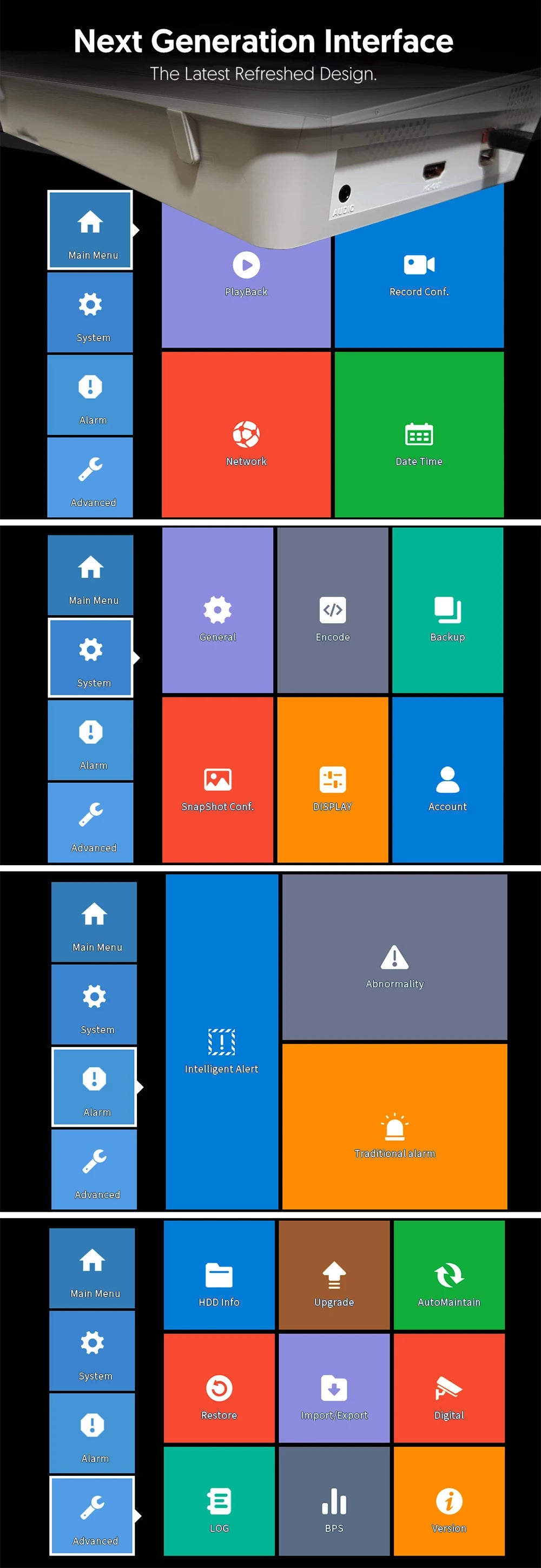

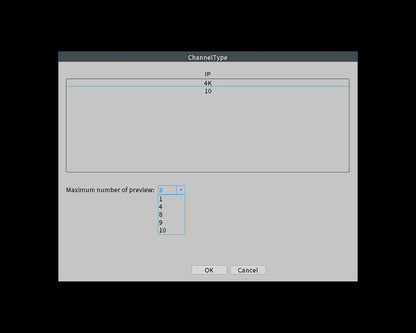

Next Generation Interface

the lastest refreshed design.

Features

●Support access of multiple XM smart front-end devices with human detection、 face detection and car detection function.
●Requires external POE expansion board power supply and network connection. Support HDMI 4K,VGA 1080P HD output;
●Support ONVIF;access third party;
●Support web, CMS, center platform management software MYEYE, provide SDK development;
●Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
●Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);
●Support GB28181 protocol access tothird-party platforms.

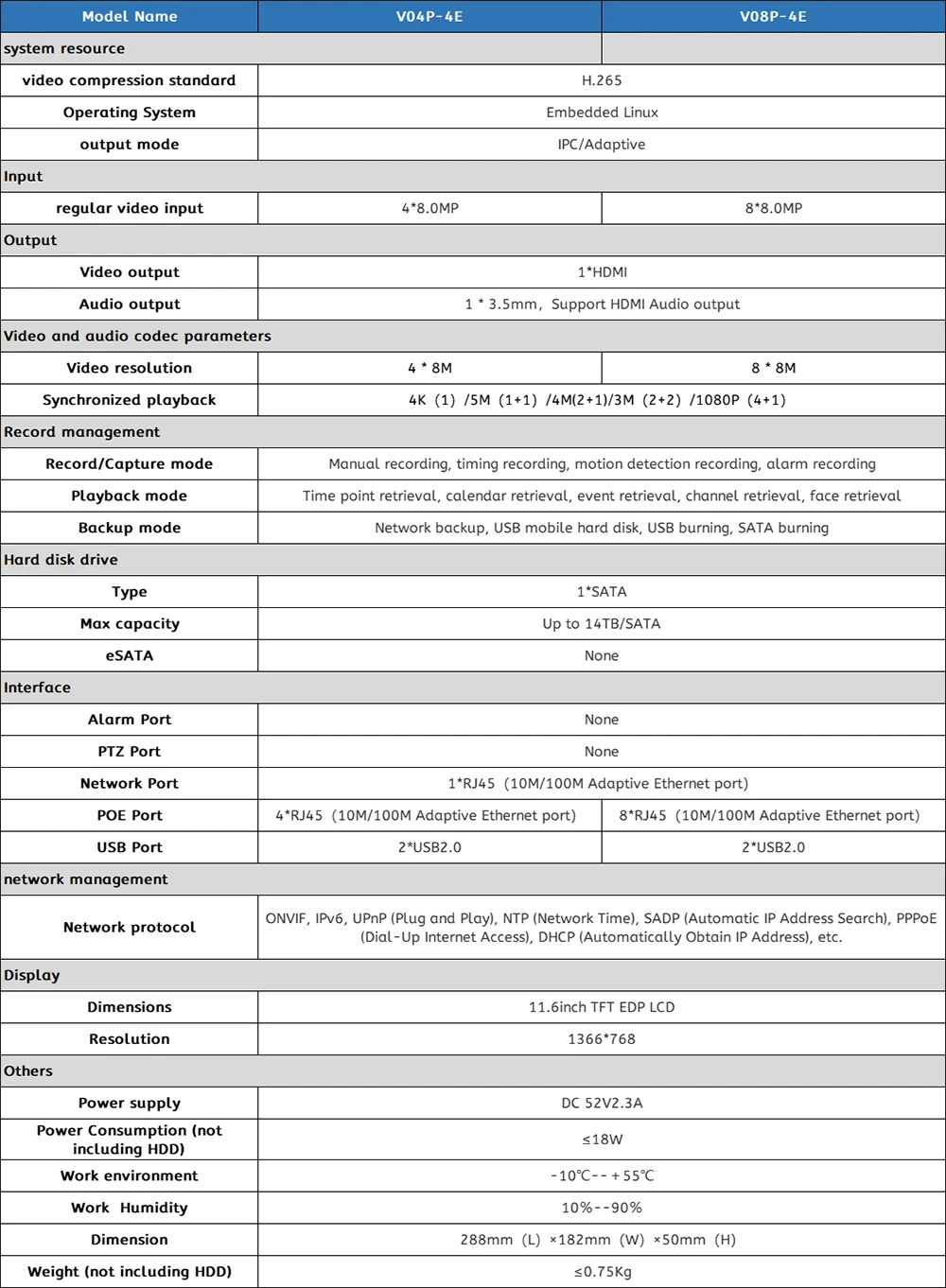

Specification

●Model Name:V04P-4E/V08P-4E

System resource
●Video compression standard: H.265
●Operating System: Embedded Linux
●Output mode: IPC/Adaptive

Input
●Regular video input: 4*8.0MP / 8*8.0MP

Output
●Video output: 1*HDMI
●Audio output: 1 * 3.5mm, Support HDMI Audio output
●Video and audio codec parameters
●Video resolution: 4 * 8M/8 * 8M
●Synchronized playback: 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1）

Record management
●Record/Capture mode: Manual recording, timing recording, motion detection recording, alarm recording
●Playback mode: Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face retrieval
●Backup mode: Network backup, USB mobile hard disk, USB burning, SATA burning

Hard disk drive
●Type: 1*SATA
●Max capacity: Up to 14TB/SATA
●eSATA: None

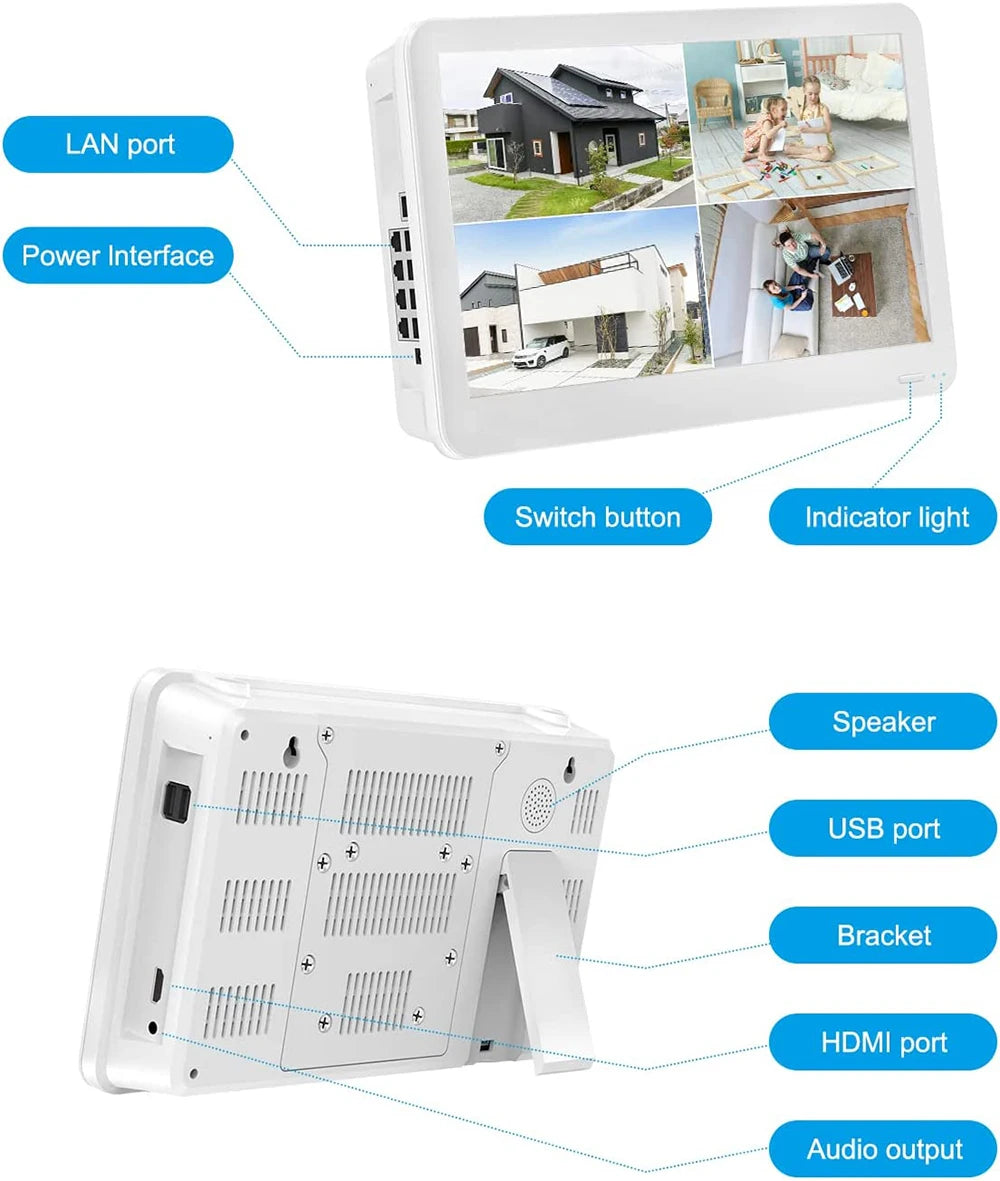

Interface
●Alarm Port: None
●PTZ Port: None
●Network Port: 1*RJ45（10M/100M Adaptive Ethernet port）

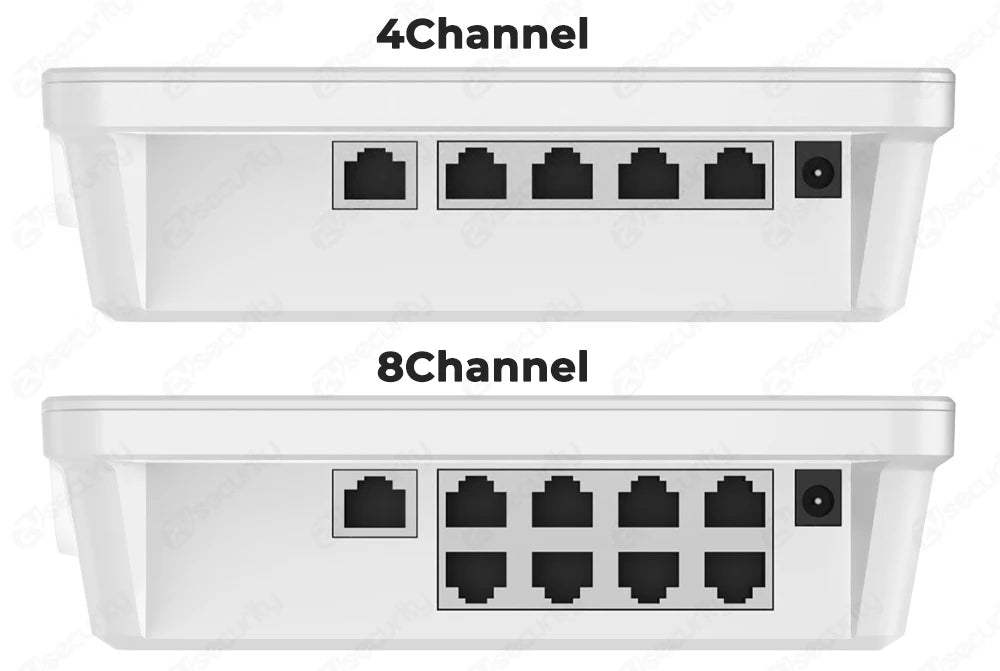

●POE Port: 4*RJ45（10M/100M Adaptive Ethernet port）/ 8*RJ45（10M/100M Adaptive Ethernet port）
●USB Port: 2*USB2.0

Network management
●Network protocol: ONVIF, IPv6, UPnP (Plug and Play), NTP (Network Time), SADP (Automatic IP Address Search), PPPoE (Dial-Up Internet Access), DHCP (Automatically Obtain IP Address), etc.
Display
●Dimensions: 12inch TFT EDP LCD
●Resolution: 1366*768

Others
●Power supply: DC 52V 2.3A
●Power Consumption (not including HDD): ≤18W
●Work environment: -10℃--＋55℃
●Work Humidity: 10％--90％

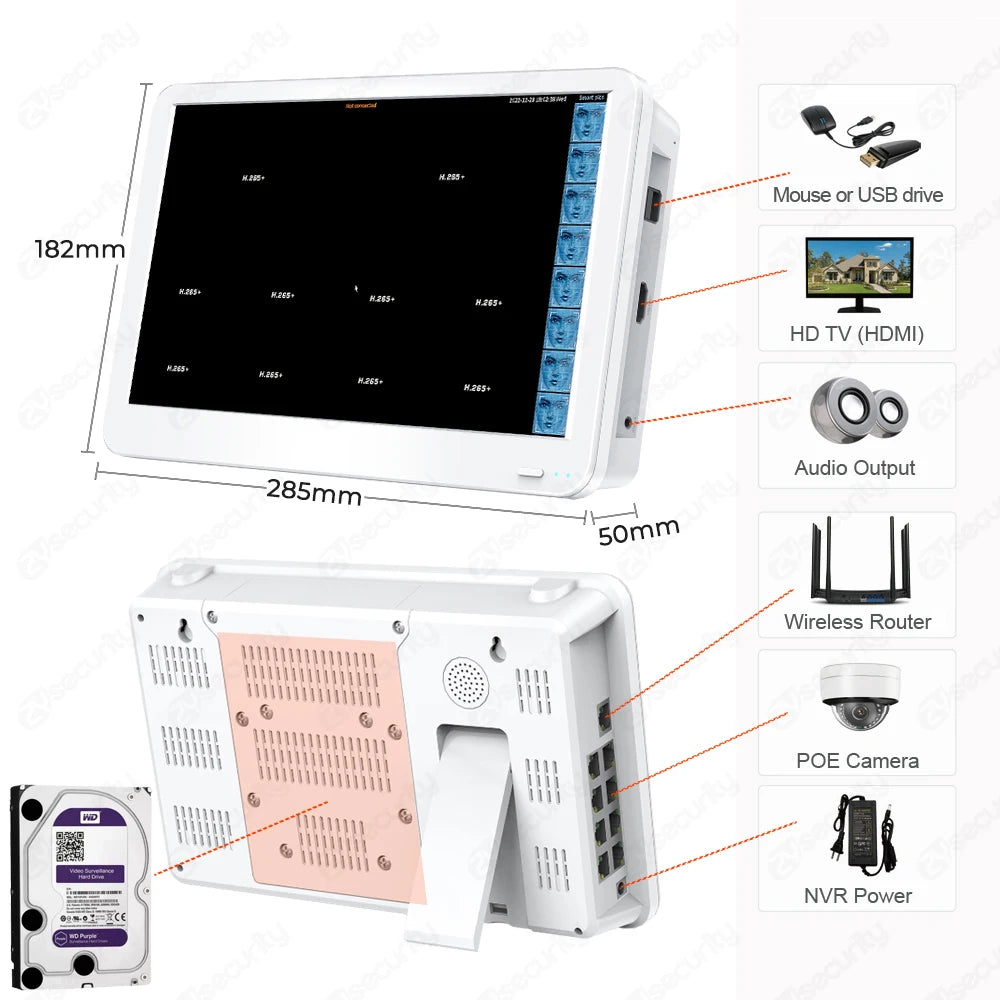

●Dimension: 288mm（L）×182mm（W）×50mm（H）
●Weight (not including HDD): 1.552Kg, 1.815kg

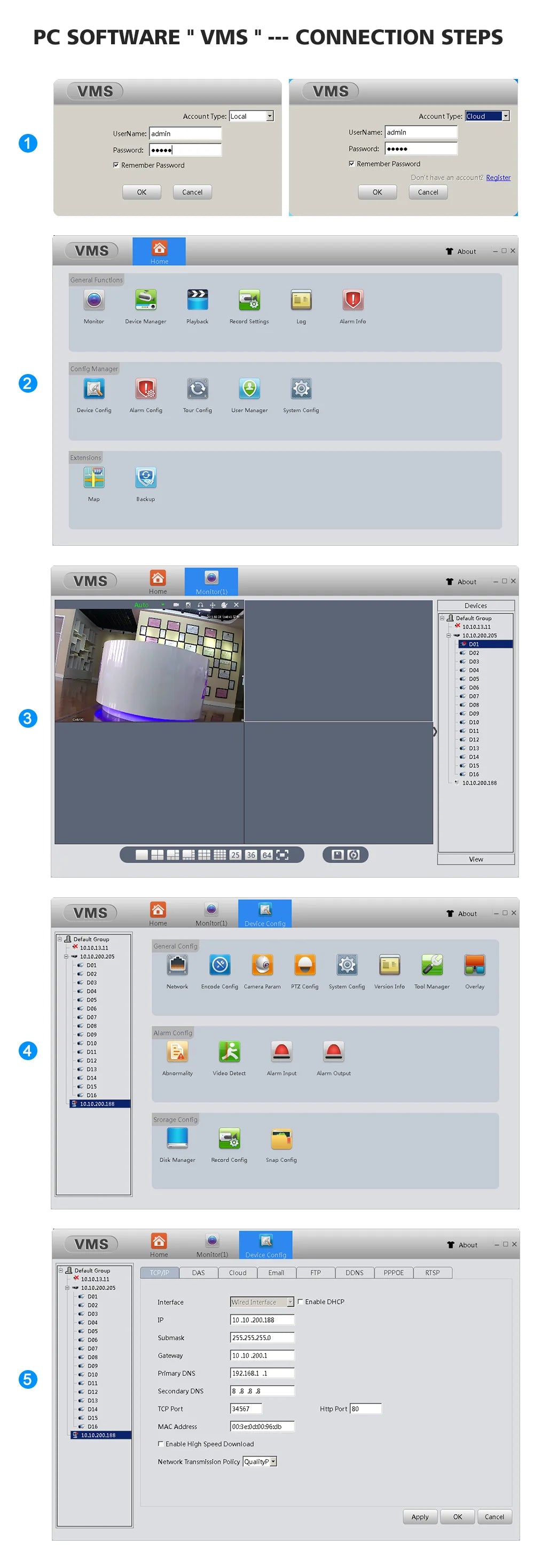

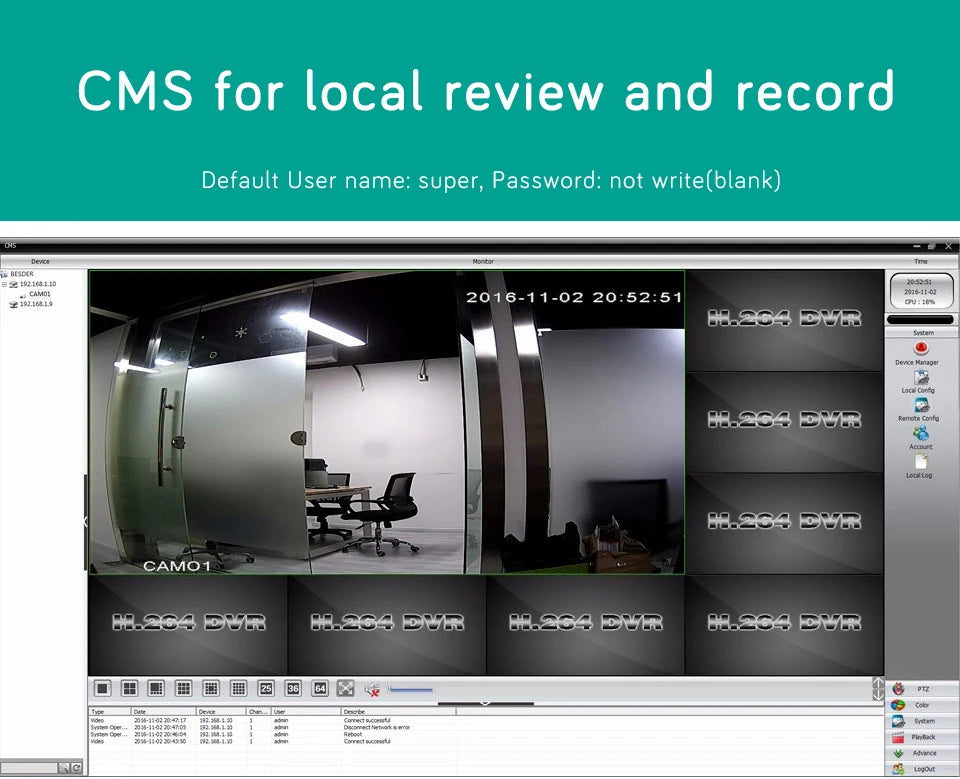

Manage the camera on PC Client by CMS Software

Default User Name: Super, Password: not write (blank)

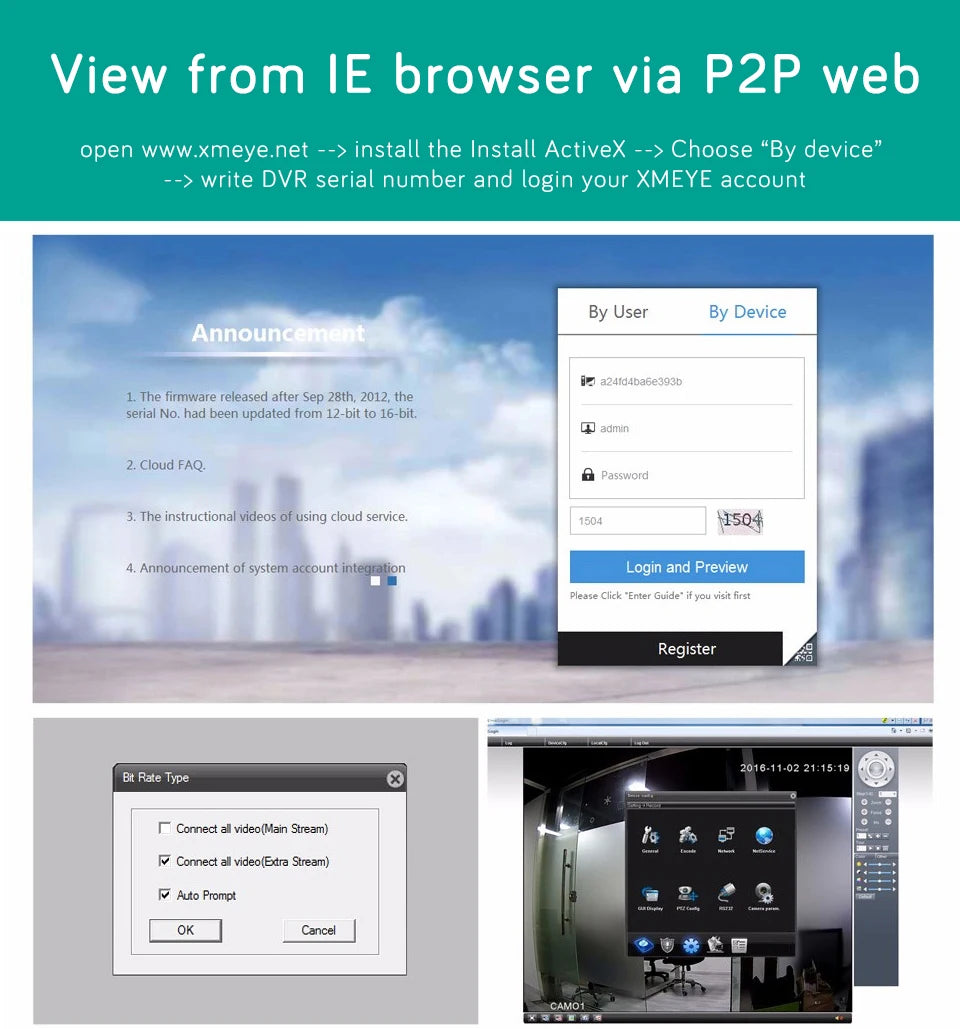

View from p2p webpage www.xmeye.net

just need log in by the camera serial number.
